Research on balancing strategies between modularization and personalization in prefabricated building design and simulation

Abstract

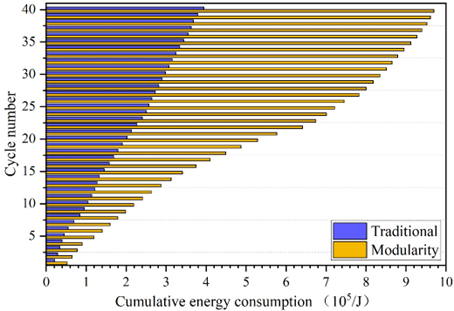

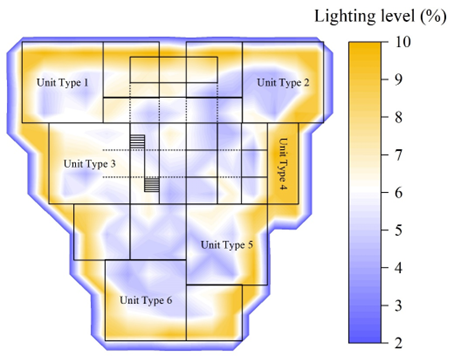

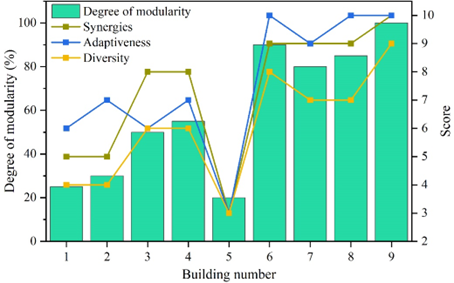

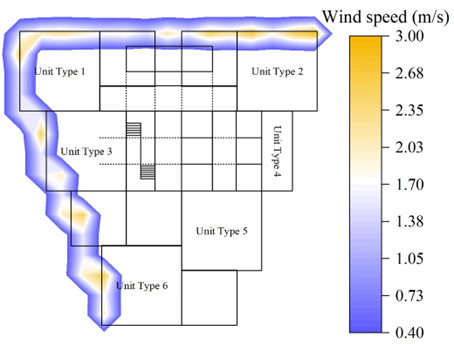

The research of modular and personalized balance strategy in assembly building design can improve the efficiency of construction and meet the demand of design diversification. Based on bim technology, an assembly building modular design method is proposed to determine the required space module, to determine the required space module, to strengthen the module structure, to set up the layout of the building, to formulate the modular panel and the assembly frame platform, and through the revit implementation of the three-dimensional visual design of modularity and personalization. The design of the 9 building of this article, in the collaborative function, spatial adaptability and the design diversity score in turn for 10th 10 “10” 9 points (full score 10). This article is designed to meet the demand of the building in daylighting and ventilation, the average daylighting coefficient is 6.440%, and the minimum value of the floor area of the building room is 18.25cent. Modular and personalized assembly frame structures have a better seismic resistance, and their limit cumulative energy consumption is 2.38 times the traditional way. Experts have the highest social benefit satisfaction in this article strategy, and the satisfaction score is 92.05.
